Thatch Firewall Membrane

Testing

• BS476: Part 6: 1989 + A1: 2009 – Fire Propagation
• BS476: Part 7: 1997 – Surface Spread of Flame
• Class 0 Summary Report
• *BS476: Part 3: 2004 – Classification and method of test for external fire exposure to roofs
• *CEN/TS 1187:2012, test 4 – Test method for external fire exposure to roofs
• *EN 13501-5:2005 – Classification report for external fire exposure to roofs
• Water Vapour Permeability Test (In accordance with BS7209: 1990)
• Air Permeability Determination Test
• Classed as “Showerproof” when tested in accordance with BS5066 WIRA Shower Test

*These test reports are based on a combined test using a minimum 50mm Thatchbatt®.

Systems

To achieve both integrity and insulation, Thatch Firewall Membrane needs to be used in conjunction with Thatchbatts® to create a more comprehensive thatch fire barrier and increase thermal insulation values. As already mentioned you will also need to follow our Thatch Firewall Membrane System to meet the requirements of BS476: Part 3: 2004 & CEN/TS 1187:2012, test 4. Find out more about the Thatch Firewall Membrane System.

Application

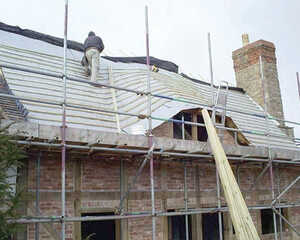

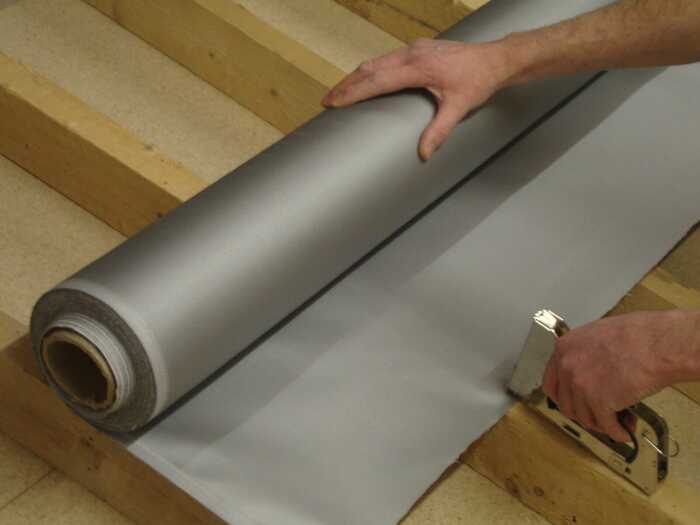

Starting at the eaves Thatch Firewall Membrane is laid horizontally across roof timbers that are normally set at approximately 400mm centres, with a minimum 75mm overlap required on all joints. The Thatch Firewall Membrane can either be stapled or nailed to the rafters and then battens are fitted over the top with 300mm centres, with the first batten 125mm from the arris rail.

If required, TAS Fire Silicone can be applied between the membranes at the point that theyjoin. For best results; apply a 5mm diameter bead of silicone using a wave effect pattern within the 75mm overlap point. Although the TAS Fire Silicone will have some instant grip, it will require 24 hours to fully cure. For best results, please ensure that the surface is clean and dry and not exposed to frost during the curing process.

Product Note

Fabrics contain no asbestos, RCF’s or respirable fibres. No organic solvents used in manufacture all coatings are water based. MSDS available on request.

General Notes

Please consult your architect or building control officer with regard to the required insulation values and the need for a vapour control layer (VCL).

• Thatch Firewall Membrane is available exclusively through Thatching Advisory Services.
• To reduce the risk of damage, each roll is individually packaged in a strong cardboard carton
• Individual rolls can be sent out via a courier and multiple rolls will be euro strapped onto a pallet and sent out via our pallet distribution provider.
• All products are supplied with Installation Instructions, which will need reviewing before completing any works.

COSHH & MSDS documents are available upon request

For more information on this and other Thatch Fire Protection Products and Systems, please contact us.
